Business Model
Water Appearance Separation Type Leak Sensor
Water Appearance Separation Type Leak Sensor
  • Model name : AMS-FFCS
  • Metal film sensor
  • Chemical exclusive sensor
  • Acid, alkali detection/water non-detection
  • Reusable, Easy installation
  • Patent registered
Level Sensor
Level Sensor
  • Self-diagnosis possible
  • Aging indication possible
  • Automatic calibration possible
  • Patent application
Controller
Controller
  • Indoor/outdoor controller development
  • Chemical discrimination detection
  • UL, CE, KC certification acquisition
pH-Conductivity Meter
pH-Conductivity Meter
  • Usable without calibration
  • Excellent chemical resistance
  • Long life, High durability
Monitoring System
Monitoring System
  • Leak sensor monitoring system
  • Wireless tracking monitoring system
  • Real-time event history management
pH sensor cleaner
pH sensor cleaner
  • Model name : ApCE (AMERS pH-sensor cleaning equipment)
  • Exclusive technology and productization
  • Patent registered
Leak Detection Sensor
Appearance Separation Seonsor - 5th Generation Leak
Appearance Separation Seonsor Appearance Separation Seonsor

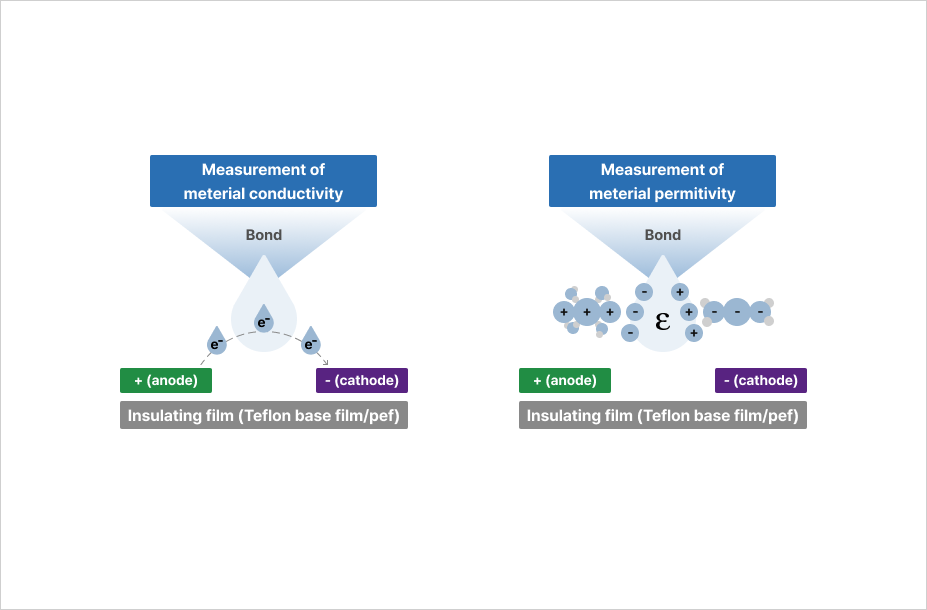

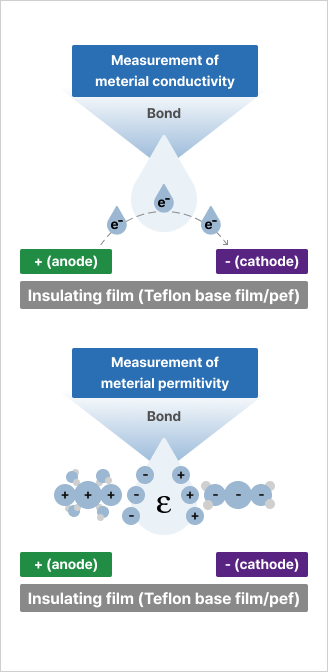

Principle of constellation separation sensor
Chemical screening and detection by measuring the conductivity of the redox chemical reaction that occurs between detection electrodes when a leak occurs.
When a dielectric leak occurs, the type of material is selectively detected by measuring the polarization charge of the dielectric material.
The principle of classifying and determining electrical properties by solution concentration by measuring the conductivity and dielectric constant of the material respectively.
The separation of the properties of inorganic electrolytes (acids, alkalis) and water is measured by conductivity, and the separation of low-concentration inorganic solutions (distilled water, etc), organic solutions, and water is measured by dielectric constant, which is a technology that overcomes limitations of previous water appearance separation methods
Features
Accurate sensing ability
  • Separation of the constituents is possible by the detection principle (separation of the constituents of water and chemical)
  • Separate detection of low concentration inorganic, polar organic, and organic waste liquids (water sensing)
  • Small amount of chemical separation can be detected if the sensor is deposited in water
Sensor sensitivity control function
  • You can set the sensitivity directly according to the installation environment
  • Microleak can be set by microleak solution concentration
  • Leak caustic alarm prevention function by bolts/tools
  • Awareness, action, and self-diagnosis are possible when a site alarm situation occurs.
  • → LCD status is displayed on the front of the controller.
Monitoring system
  • Owns its own development program, can be mapped according to the installation location
  • Text can be received in case of leak/disconnection
  • Event detection history can be managed
Reusable and durable
  • Integration of the product by the thermal compression process of the insulating film/detection pattern (no detachment or detachment of the detection pattern)
  • Durable, reusable
Excellent constructability
  • Sensor installation direction can be changed without corner connector
  • Easy to install
